Wireless Burglar Alarm System G1E

Brief introduction
This GSM alarm system PH-G1 adopts GSM network and Digital Signal Processing technology, and is widely used in security field. With a GSM SIM card, it can be used wherever you want and no need to connect to a telephone line, it is more convenient and easier to install and use.

________________________________________________

Main functions
1.  iOS APP & Android APP operation
2.  English, Spanish, Chinese, Russian, French, Russian for optional
3.  Each zone with independent arm functions
4.  With 2 wired zones and 12 wireless zones
5.  With voice reminder when users operate the system
6.  Works with external Microphone & speaker
7.  Each wireless zone can work with unlimited wireless sensors
8.  10 seconds D.I.Y voice record
9.  3 text message alarm number & 3 calls alarm number
10.  Name what you mind for each zone
11.  Inquiry the system status wherever by SMS
12.  With password protection
13.  Wireless Emergency function (24 hours zone)
14.  With Backup rechargeable battery, system is able to keep working for 10 hours even if there is a power is failure.
15.  When GSM signal is weak or there is no signal, it will send SMS or sound the siren to inform users.

______________________________________________

Specification
1.  GSM network frequency Standard: 850/900/1800/1900MHz
2.  External power failure alarm: Start-time: Less than 1s
3.  Alarm response time: Less than 10s (GSM with normal signal)
4.  Power requirements: AC110V~220V 50Hz or 60Hz
5.  Standby lithium battery: DC8.4V, 700-800mA
6.  Working conditions: Operating temperature: -20 to 60
     Humidity: ≤95%
7.  Wireless frequency: 433MHz/315MHz

________________________________________________

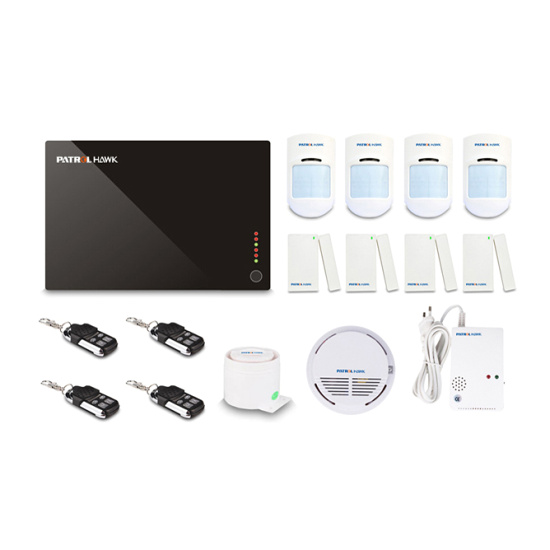

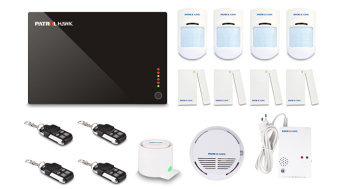

Packing List

GSM Alarm Panel	1 pcs
Wireless PIR Sensor With Internal Antenna	4 pcs
Wireless Door Sensor With Internal Antenna & DIP Switch	4 pcs
Remote Controller	4 pcs
Wired Siren	1 pcs
Power Adapter	1 pcs
Wireless Smoke Sensor	1 pcs
Wireless Gas Sensor	1 pcs
User Manual	1 pcs
