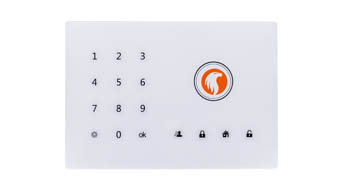

GSM Touch Keypad Alarm PH-G2

Product category: Intruder Alarm System
G2 comes with touch keypad, 24 wireless zones and 2 wired zones, two ways communication.etc.
Hotline: 086-0755-26498270
Fax: 086-0755-83976450

GSM Touch Keypad Alarm PH-G2

G2 Alarm control panel is combine technology with stylish design into one. Whoever has it for the house,

it will bring absolute security and sense of fashion.

D.I.Y

Installation & Easy Operation

G2E is a D.I.Y GSM SMS home alarm control panel which enable to arm/disarm, program alarm numbers through text message commanddirectly one cell phone or app on smart phone.

Direct phone call

Through the touch keypad, user can setup alarm numbers, make phone calls directly, add additional sensors,etc.

Built-in Siren

G2 comes with internal siren, user can D.I.Y to setup the siren's alarming time between 0-254s. Two way communicates, linsten in remotely and speak to someone in the house.

Home mode setting

It's enable to setup part of the zones in arm mode and others in disarm mode, it's more friendly for the householder at home when sleeping, etc.



There're option of 2 Packages:

Standard Package PH-G2C includes:

  • 1x G2Alarm Control Panel
  • 1x PH-WWHW Wireless PIR Motion Sensors
  • 1x PH-WWMC Wireless Door/window Magnetic Contact
  • 2x PH-YKQ4 Wireless Remote Controllers
  • 1x Wireless panic button

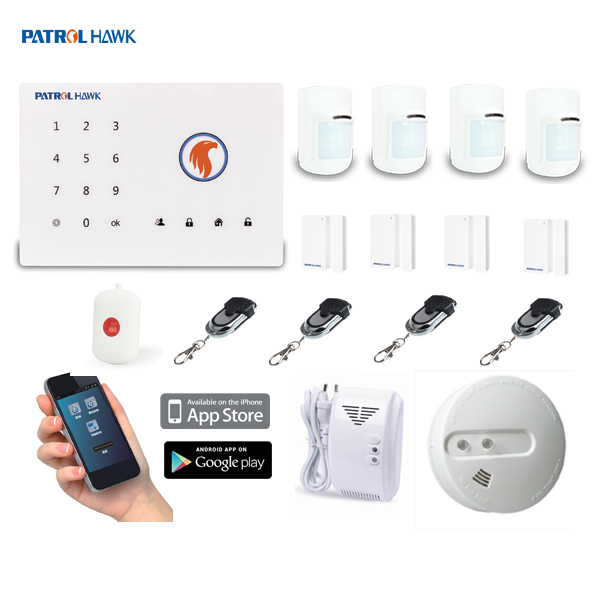

Large Package PH-G2E includes:

  • 1x G2Alarm Control Panel
  • 4x PH-WWHW Wireless PIR Motion Sensors
  • 4x PH-WWMC Wireless Door/window Magnetic Contact
  • 4x PH-YKQ4 Wireless Remote Controllers
  • 1x Wireless panic button
  • 1x Wireless GAS Sensor
  • 1x Wireless Smoke Sensor



Specifications

Main Panel Specifications
Alarm To Host GSM
Receiving Frequency 433MHz
Unobstructed Effective Range (m) 30 meters
Wireless Zones 24
Wired Zones 2
SMS Phone Numbers 3
Alarm To User Phone Numbers 3
Sound Recording Yes
Alarm/Disalarm System Phone, SMS, Wireless Keyboard
Local Alarm Sound Scale (dB/m) 110
Output Power Supply (V) DV12
Input Power Supply (V) AC100~240
Battery Type Built-in Li-Battery
Battery Working Time (Hours) 12
Operating Temperature (°C) -20~+50
Operating Humidity (RH) 95%
Dimensions (L x W x D, mm) 187 x 130 x 27
Infrared Detector Specifications
Power Supply (V) DC9V
Quiescent Current (uA) 25
Transmitting Current (mA) 15
Battery Life (Year) 1
Detection Range (m) 10
View Angle (degree) 110
Transmission Frequency 433MHz
Unobstructed Effective Range (m) 30
Response Time (s) 1
Coding Type Learning Code
Installation Wall
Operating Temperature (°C) -20~+50
Operating Humidity (RH) 95%
Dimensions (L x W x D, mm) 106 x 62 x 46
Door Detector Specifications
Power Supply (V) DC12
Quiescent Current (uA) 16
Transmitting Current (mA) 19
Battery Life (Year) 1
Transmission Frequency 433MHz
Unobstructed Effective Range (m) 30
Mmagnetron Distance (mm) 15
Coding Type Learning Code
Operating Temperature (°C) -10°C~+60°C
Operating Humidity (RH) 95%
Dimensions (L x W x D, mm) 66 X 35 X 14
Remote Controller Specifications
Power Requirements (V) DC12
Current Consumption (mA) 15
Transmit Duration (s) 1
Transmission Frequency 433MHz
Unobstructed Effective Range (m) 30
Coding Type Learning Code
Operating Temperature (°C) -10°C~+60°C
Operating Humidity (RH) 95%
Pakage Contents Main Panel, Smoke Detector, Door Entry Contacts, Motion Sensor Mounting Bracket, Power Adapter, Remote Controller, Infrared Detector
