Wireless Motion Sensor

Product category: Accessories
*Low battery alert
*lose connection alert
*Transmitting distance 30-50meters indoor, 100 meters in the open area.
Hotline: 086-0755-26498270
Fax: 086-0755-83976450

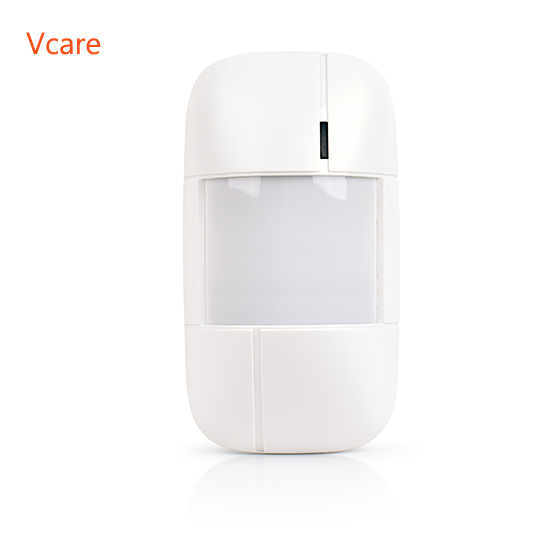

Wireless Motion Sensor

Model: PH-818HY

Main Features:

  • ASIC Adopted
  • Auto temperature compensation
  • Send alarm signal by RF
  • No wiring, easy installation
  • Low battery indication
  • SMT design adopted
  • Heartbeat Timing Function

Technical Parameter:

Operating voltage:DC 3V (2 *1.5V AAA battery)

Static current:  15uA

Alarm current:  14mA

Detecting distance: 9~12m

Detecting angle: 110

Code form: 1527

Radio frequency: 433MHz

Radio distance: 150m (open area)

Environment humidity:  95% RH (no congelation)

Anti RF interference: 10MHz 1GHz 20V/m

Installation mode: wall mounted or hanged in corner

Installation height: 1.7 to 2.5m (2.2m is Proposed)

Outline Size: 107*57.4*37mm

Low battery indicator: Green LED

Alarm indicator: red LED

Range of coverage: 11 distance, 8 middle, 5 vicinities

Sensor: dual element infrared sensor

Operating temperature: -10 ~ +50 ℃
