Shenzhen Patrol Hawk Technology Co., Ltd
Leovine:
Tuya WiFi alarm system
Tuya WiFi and GSM smart home alarm
Tuya WiFi alarm system is a all in one smart home security alarm system which integrates intruder alarm system , security camera, panic alarm, fire alarm etc. It transmits alarm notification through WiFi and GSM dual-network in a fast, safe and simple way.
Feature:
1. Using the Tuya Smart /Smart Life APP, WIFI +GSM dual network.
2. Support Central Monitoring System which is powered by Patrol Hawk
3. Support real-time monitor of gateway and detectors and then feedback status to the Tuya APP.
4. Tuya APP and CMS can receive the alarm messages.
5. Support to check alarm records
6. Support 5 SMS text message numbers and 5 call numbers.
7. Alert for gateway tamper, low power, power failure/ recovery;
8. Comes with 99 wireless zones, 30 fire alarm zones, 8 emergency panic zones, 8 medical panic zones, 4 water leakage zones, 20 remote controllers.
9. Two-way communication.
10. Compatible with Tuya IP camera
11. Comes with Chinese, English, Russian, Spanish, German,Italy and French languages.
12. With multiple defense zones programming functions, such as away mode /home mode/all day.
13. Support delay alarm, delay arm
14. DIY setup of the siren ringing time
15.One button operation to add accessories, easy and quick, safe and efficient
Technical parameter | |
| Product Name | Tuya smart alarm system |
| Brand Name | Vcare |
| Model Number | Vcare5T Kit C |
| Network | WiFi+GSM |
| 4G frequency | 850/900/1800/1900MHz |
| Certification | CE, FCC, RoHs |
| Guideline | DIY |
| SMS numbers | 5 |
| Calling numbers | 5 |
| Wireless frequency | RF433MHz |
| Max distance (m) in open space | 100 meters |
| Language | Chinese, English, Russian, Spanish, German,Italy and French languages |
| Max qty PIR/door sensor | 99 |
| Max qty Remote control/keypad | 20 |
| Max qty fire/gas detector | 30 |
| Max qty water leakage detector | 4 |
| Max qty emergency panic button | 8 |
| Max qty medical panic button | 8 |
| Max qty wireless siren | 4 |
| Power supply | AC110~220V |
| Standby Current | ≤110mA |
| Alarm Current | ＜500mA |
| Backup battery | 7.4V 850mAHh, Lithium battery |
| Battery working time | 7 hours |
| Material | ABS |
| Warranty | 2 Years |
| Working Temperature | -10℃-50℃ |
| Humidity | ≤90% |
| Gateway/Hub measure | 146mm ×146mm ×27mm |

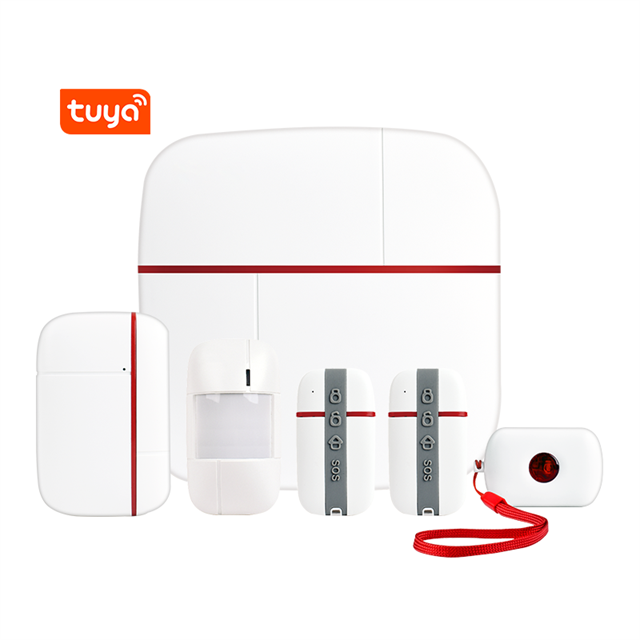

Standard Vcare 5T Kit C includes:
Description | Quantity |
Gateway/Hub | 1 pc |
Wireless PIR sensor | 1 pc |
Wireless door/window sensor | 2 pc |
Remote control | 1 pc |
Wireless smoke detector | 1 |
Wireless gas detector | 1 |
Emergency panic button | 1 |
Tuya IP camera | 1 |
Power adaptor | 1 pc |
User Manual | 1 pc |
Packaging
Packaging Description | Unit(set) | Measure(cm) | Weight(kg) |
Standard kit C in gift box | 1 | 36.5*26.0*12.3 | 2 |
Carton | 5 | 65*44*30 | 11 |
