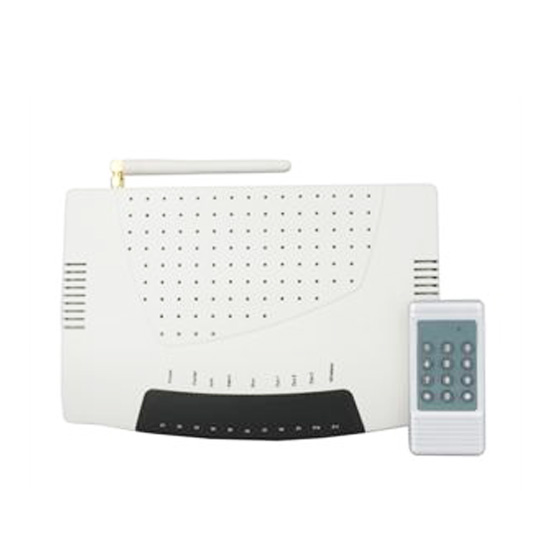

China burglar alarm systems G11

Product category: Intruder Alarm System
2 way-communication
Remote monitoring by SMS & phone
Voice prompt
Built-in rechargeable lithium battery backup
Power-off alerm
With Patrol Hawk contact-ID, compatible with CMS.
Support quad-band
Hotline: 086-0755-26498270
Fax: 086-0755-83976450

Main functions

• Russian,Spanish,German,English, Danish, French languages for optional
• 12 Wreless zones and 2 wired alarm zones
• With 3 replay output for activate light on/light off,etc.
• Support countless wireless sensors
• Store 3 alarm phone numbers and 3 SMS numbers
• 30s delay arm
• 2 way-communication
• Remote monitoring by SMS & phone
• Voice prompt
• Built-in rechargeable lithium battery backup
• Power-off alerm
• With Patrol Hawk contact-ID, compatible with CMS.
• Support quad-band

Different packing for optional:

Standard packing PH-G11

• Panel(with battery backup ) x 1
• Remote control x 2
• Siren (with 110DB) x1
• Door/window contact x 1
• PIR motion detector x 1


Parameter
GSM network frequency Standard: 900/1800/850/1900MHZ
External power failure alarm: Start-time: less than 1s
Alarm response time Less than 10s (GSM with normal signal)
Power requirements: AC110V~250V 50Hz or 60Hz
Standby lithium battery: DC7.4V, 700-800mA, 4000mA optional
Standby battery working hours: more than 10 hours,
4000mA for over 3 days
Relay contact output 1 & 2: 7A, 240VAC; 10A, 125VAC;10A, 28VDC
Relay contact output 3: 3A, 120VAC; 3A 24VDC
Working conditions operating temperature: -20℃ to +60℃ Humidity:  ≤95%
Wireless frequency: 315MHZ or 433MHZ for optional
