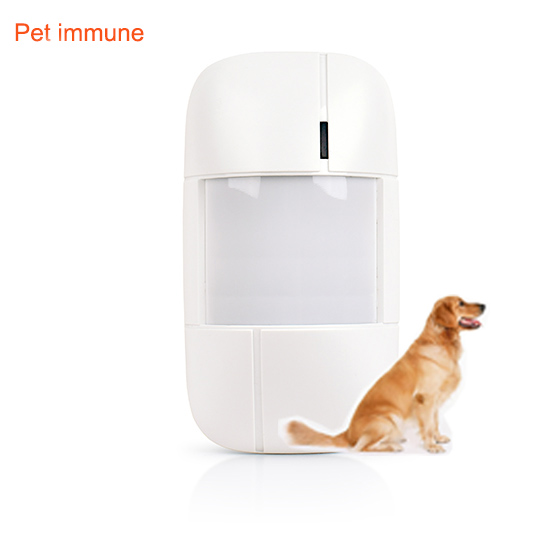

868/433 Mhz Pet Immune PIR Motion Sensor PH-818FCHW

Product category: Accessories
● No wiring, easy installation ● Low battery indication ● SMT design adopted ● "Heartbeat" Timing Function
Hotline: 086-0755-26498270
Fax: 086-0755-83976450

818FCHW adopts advanced technology in signal processing and provides superhigh detection ability and anti fault alarm ability.

The detector will detect movement of human automatically when intruder pass through the detected area, and it will send alarm signal to alarm

host if there is movement. Easy to setup, it can also send out low battery alerts and lost connection with WiFi alarm system - Vcare.

The detector features pet immunity for small animals upto 15kgs.

It is designed suitable for the safety of residential house, villas, factories, markets, warehouses, office building etc.



Main Features:
● ASIC Adopted
● Auto temperature compensation
● Send alarm signal by RF
● No wiring, easy installation
● Low battery indication
● SMT design adopted
● "Heartbeat" Timing Function

TECHNICAL SPECIFICATION
Operating voltage: DC 3V (2 *1.5V AAA battery)
Static current: ≤15uA
Alarm current: ≤14mA
Detecting distance: 9~12m
Detecting angle: 110°
Code form: 1527
Radio frequency: 433MHz
Radio distance: 150m (open area)
Environment humidity: ≤ 95% RH (no congelation)
Anti RF interference: 10MHz―1GHz 20V/m
Installation mode: wall mounted or hanged in corner
Installation height: 1.7 to 2.5m (2.2m is Proposed)
Outline Size: 107*57.4*37mm
Low battery indicator: Orange LED flash twice
Alarm indicator: red LED light 2 second
Range of coverage: 11 distance, 8 middle, 5 vicinities
Sensor: dual element infrared sensor
Operating temperature: -10℃ ~ +50℃
