Vsee

Product category: IP Camera

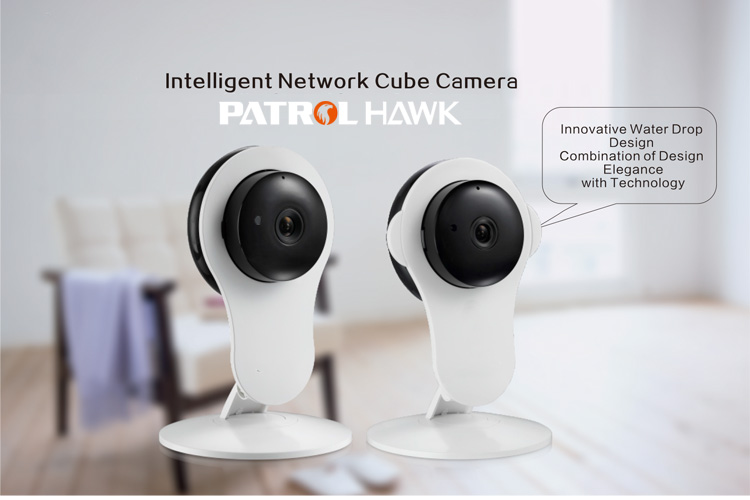

innovatine water drop design combination of design elegance with technogy
Hotline: 086-0755-26498270
Fax: 086-0755-83976450

HD IP camera Monitoring

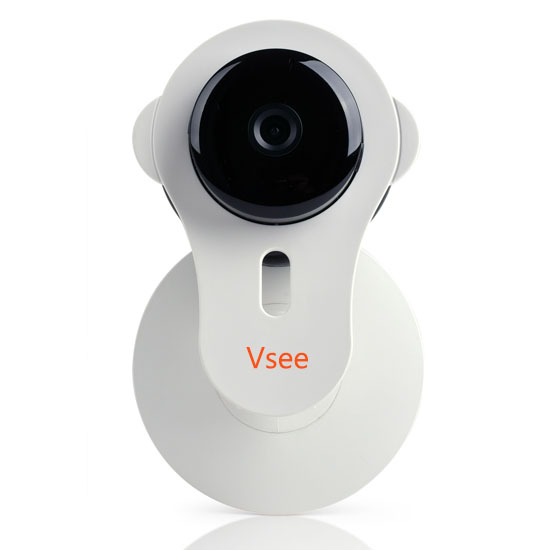

Vsee

Our Vcare HD IP camera Vsee acts as an eye within your premises ensuring safety for your whole family.



Specifications:

Operation System: La test H.264 Baseline Profile

Image Sensor: 1.0 MP HD CMOS Sensor

Core Chipset: Latest DSP Chipset

Resolution: 720 HD images, resolution upto 1280*720P, 1.0MP

Resolution Variable: 720P (1280*720), VGA (640*360), QVGA (320*180)

Frame Rate: 1~30fps

Min.Illumination: color: 1.5 Lux, W/B: 0 Lux with IR LED ON

IR Distance: Dual IR cut fillter with auto switch, 2 pcs high-powered ceramic IR LEDs, night vision at 20 Meters.

S/N Ratio: ≥ 38db

CMOS Features: support auto balance, contrast and background light compensation.

Lens/visual Angel: 3.6mm megapixel lens @F14/74°

System security: Account, password two level user authentication.

ONVIF Protocol: support

Mobile phone monitor: support megapixel HD mobile phone monitor, dedicated IPHONE and Android software.

(Software version required iOS7.0, Android 3.0 and above)

Local storage: support maximum 128Gb TF card, 24 hours recording. (storeage capacity of above 32GB requires

FAT 32 formatting.)

Audio Compression: G.711A

Audio Input: 1CH Buitin 38db microphone

Audio Output: Built-in two speakers (8Ω1W)

Video Management: Recording mode: manual recording, schedule cording and alarm recording.

Video storage: TF card Max: 128GB, NVR (support Onvif), Local client software.

Network interface: 10Mbps/100Mbps self adaptive RJ45 interface

Protocol: TCP/IP, HTTP/TCP,UDP, SMTP, DHCP, DNS, DDNS, NTP, UPnP, P2P.

WiFi: WiFi 802.11b/g/n



System Configuration: iOS 7.0, Android 3.0 and above.

Material: cartoon robot/engineering plastics

Working Condition: Indoor.

Power Supply: DC5V 2A

Working Temperature: -10℃~50℃

Working Humidity: ≤95% RH

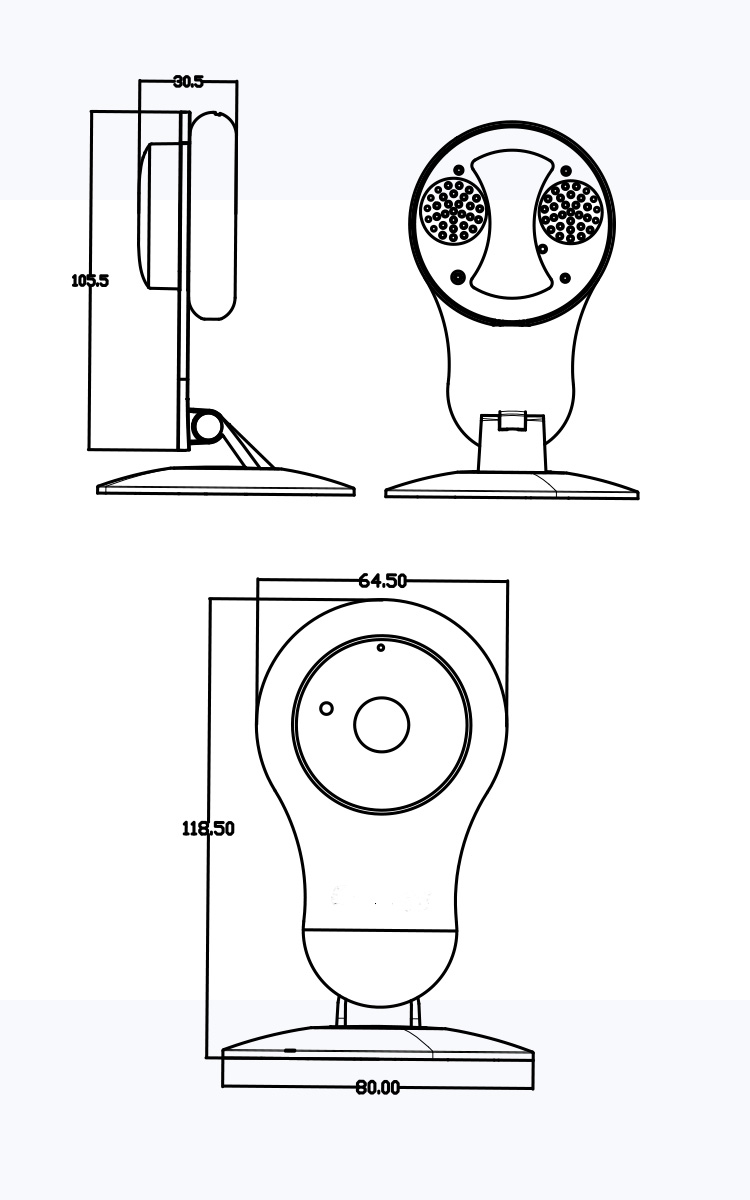

Dimensions: 104 L* 102W* 117H (MM)

Weight: N.W: 300g, G.W: 680g

Dimensions: 200L*150W*115H (mm)

Installation method: Mounted on wall or put it on the table.
