Smart Security Alarms Vcare 3

Product category: Intruder Alarm System
HIGHTLIGHTS WiFi and GSM/GPRS Dual-Network transmitting 868MHz, two-way digital transmission 99 smart sensors, 4 water sensors, 30 fire/gas detectors, 24 smart sockets Manageable by Alarm Monitoring System (CMS) 2 Wired zones and 1 external wired siren
Hotline: 086-0755-26498270
Fax: 086-0755-83976450

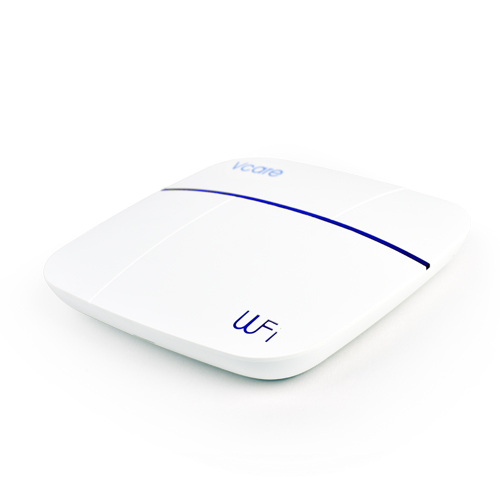

Smart Home Security Alarm System Vcare 3

Video link: https://www.youtube.com/watch?v=L9S-jH3r5ok


WiFi and GSM/GPRS Dual-Network transmitting

868MHz, two-way digital transmission

99 smart sensors, 4 water sensors, 30 fire/gas detectors, 24 smart sockets

Manageable by Alarm Monitoring System (CMS)

2 Wired zones and 1 external wired siren






Vcare 3 is a smart home security hub which combines an all in one intruder alarm system including security camera, panic alarm, SOS service and fire alarm. It transmits alarm information through WiFi and GSM/GPRS dual-network in a fast, safe and simple way.
Vcare 3 gives you complete control over your premises. Its benefits starting from distance monitoring, having 355 degree live footage using an internal PTZ camera, voice and sound from both ways allowing flawless conversation, excellent SOS service just at one click, automatic humidity and temperature update of your home and a lot more.

This wonderful technology contributes to a happier, safe and smarter life while taking us to the future.

  • It's able to work together with iOS, android apps on your smart phone.
  • It's able to add maximum 100 users.
  • Comes with 3 SMS text message numbers and 3 call numbers.
  • Comes with 99 wireless zones, 30 fire alarm zones, 4 water leakage zones, 2 wired zones, 20 remote controllers.
  • Adding extra sensors by scanning QR code, it's more easy and convenient.
  • Comes with Chinese, English, Russian, Spanish, German,and French languages.
  • Two-way communication.
  • With video monitor
  • Built-in timely arm, disarm and setup home mode function. (maximum 3 different time.)
  • With self-detecting temperature, humidity and be able to setup over-temperature alert.
  • WIFI failure or GSM/3G network failure alert
  • Door/window open alert
  • Monitor the status for the sensors.
  • Remind of the sensors with low battery
  • Delay alarm, delay arm and delay disarm (0 to 99s for optional)
  • The ringing time of the siren is able to DIY setup.(0 to254s or keep warning)
  • With wireless emission function, control 99 wireless sirens.
  • Remote control via text message and phone keypad.
  • With Home mode setting
  • 10s DIY voice record.
  • External power fail or recovery remind function.
  • Siren remind when arming, disarming by remote control.
  • SMS remind when arming, disarming by remote control.


Base/Gateway Specifications

Housing Materials


Hub version

GSM/Wi-Fi or 3G/Wi-Fi dual network

GSM frequency

850/900/1800/1900Mhz (EU, US, Asia frequency support)


IEEE 802.11b/g/n.2.4GHz

Housing Color

White + red or White + blue for option

Standby Current


Alarm Current


Receiving Frequency


Unobstructed Effective Range (m)

30 -100 meters

Wireless Zones (total)


Remote controller/keyypad


Fire/gas detectors


Water leakage detectors


Smart sockets


SOS buttons


Medical call buttons


Wireless sirens


Wired Zones


Wired siren


SMS Phone Numbers


Alarm To User Phone Numbers


Sound Recording


Alarm/Disalarm System

Smart Phone App, Phone, SMS, Wireless Keyboard

Local Alarm Sound Scale (dB/m)


Output Power Supply (V)

DV12 1A

Input Power Supply (V)


Battery Type

Built-in Li-Battery, 7.4V, 800mAh

Dimensions (L x W x D, mm)

145(L)*145(W)* 30(H)mm

Battery Working Time (Hours)


Operating Temperature (°C)


Operating Humidity (RH)


hot key:Wireless alarm, home security alarm, smart alarm, Vcare 3
