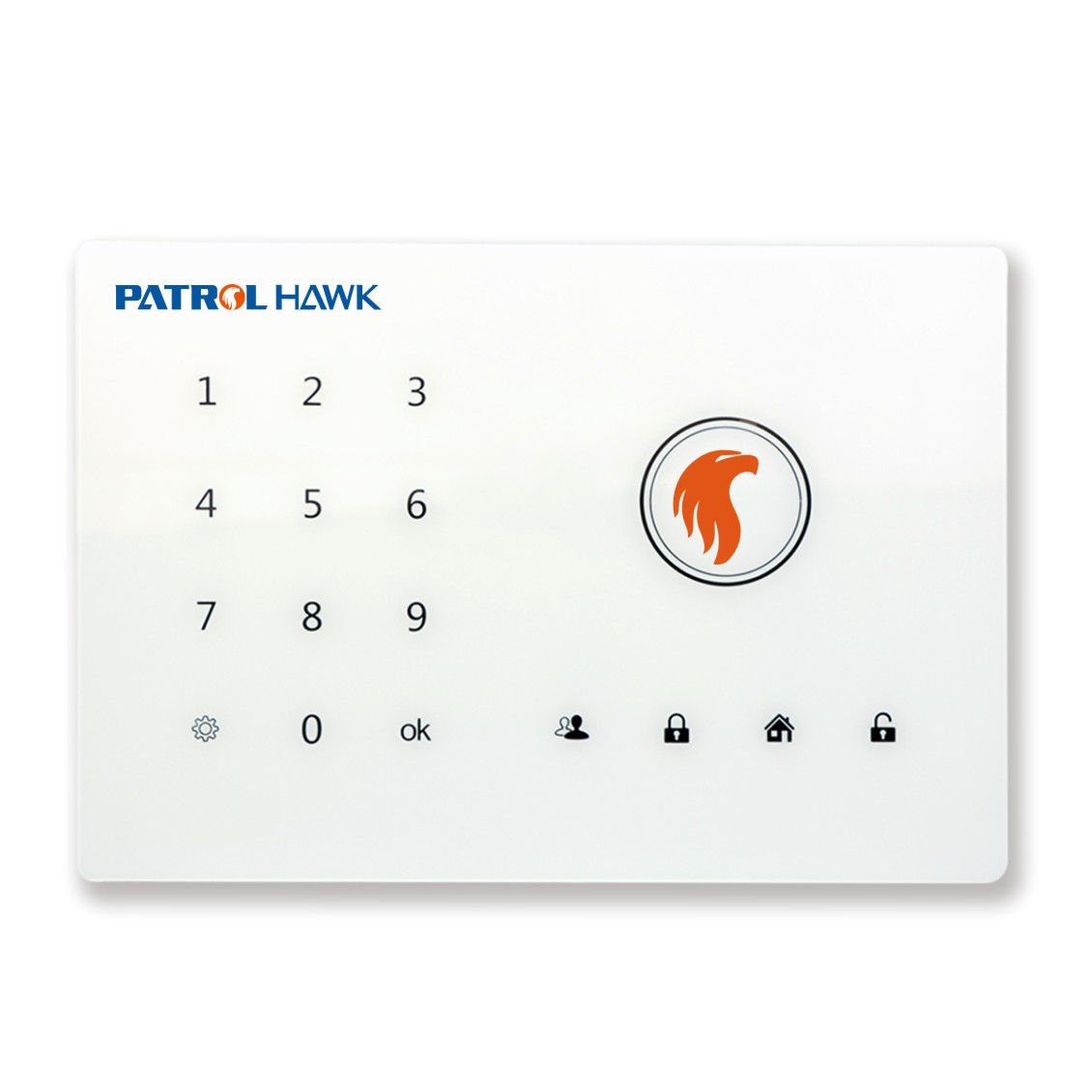

Smart Alarm System Family Package PH-G2E
GSM SMS Smart Home Alarm System G2E
G2E Alarm control panel is combine technology with stylish design into one. Whoever has it for the house, it will bring absolute security and sense of fashion.
.jpg)
D.I.Y
Installation & Easy Operation
G2E is a D.I.Y GSM SMS home alarm control panel which enable to arm/disarm, program alarm numbers through text message commanddirectly one cell phone or app on smart phone.
Direct phone call
Through the touch keypad, user can setup alarm numbers, make phone calls directly, add additional sensors,etc.
Built-in Siren
G2 comes with internal siren, user can D.I.Y to setup the siren's alarming time between 0-254s. Two way communicates, linsten in remotely and speak to someone in the house.
Home mode setting
It's enable to setup part of the zones in arm mode and others in disarm mode, it's more friendly for the householder at home when sleeping, etc.
Family Kit includes
1x G2E Alarm Control Panel
4x PH-WWHW Wireless PIR Motion Sensors
4x PH-WWMC Wireless Door/window Magnetic Contact
4x PH-YKQ4 Wireless Remote Controllers
1x Wireless panic button
1x Wireless GAS Sensor
1x Wireless Smoke Sensor
Specifications
| Main Panel Specifications | |
|---|---|
| Alarm To Host | GSM |
| Receiving Frequency | 433MHz |
| Unobstructed Effective Range (m) | 30 meters |
| Wireless Zones | 24 |
| Wired Zones | 2 |
| SMS Phone Numbers | 3 |
| Alarm To User Phone Numbers | 3 |
| Sound Recording | Yes |
| Alarm/Disalarm System | Phone, SMS, Wireless Keyboard |
| Local Alarm Sound Scale (dB/m) | 110 |
| Output Power Supply (V) | DV12 |
| Input Power Supply (V) | AC100~240 |
| Battery Type | Built-in Li-Battery |
| Battery Working Time (Hours) | 12 |
| Operating Temperature (°C) | -20~+50 |
| Operating Humidity (RH) | 95% |
| Dimensions (L x W x D, mm) | 187 x 130 x 27 |
| Infrared Detector Specifications | |
| Power Supply (V) | DC9V |
| Quiescent Current (uA) | 25 |
| Transmitting Current (mA) | 15 |
| Battery Life (Year) | 1 |
| Detection Range (m) | 10 |
| View Angle (degree) | 110 |
| Transmission Frequency | 433MHz |
| Unobstructed Effective Range (m) | 30 |
| Response Time (s) | 1 |
| Coding Type | Learning Code |
| Installation | Wall |
| Operating Temperature (°C) | -20~+50 |
| Operating Humidity (RH) | 95% |
| Dimensions (L x W x D, mm) | 106 x 62 x 46 |
| Door Detector Specifications | |
| Power Supply (V) | DC12 |
| Quiescent Current (uA) | 16 |
| Transmitting Current (mA) | 19 |
| Battery Life (Year) | 1 |
| Transmission Frequency | 433MHz |
| Unobstructed Effective Range (m) | 30 |
| Mmagnetron Distance (mm) | 15 |
| Coding Type | Learning Code |
| Operating Temperature (°C) | -10°C~+60°C |
| Operating Humidity (RH) | 95% |
| Dimensions (L x W x D, mm) | 66 X 35 X 14 |
| Remote Controller Specifications | |
| Power Requirements (V) | DC12 |
| Current Consumption (mA) | 15 |
| Transmit Duration (s) | 1 |
| Transmission Frequency | 433MHz |
| Unobstructed Effective Range (m) | 30 |
| Coding Type | Learning Code |
| Operating Temperature (°C) | -10°C~+60°C |
| Operating Humidity (RH) | 95% |
| Pakage Contents | Main Panel, Smoke Detector, Door Entry Contacts, Motion Sensor Mounting Bracket, Power Adapter, Remote Controller, Infrared Detector |
